Cast Iron Grinding Balls
Quick Overview
The Cast iron grinding ball is excellent in surface quality, toughness, and resistance to impact and abrasion. It won’t crack and lose circularity quickly.
Grinding media is used in ball mills to pulverize or mix materials into powders.
The forged steel grinding ball must use super wear-resistant material to ensure abrasion resistance.
Benefits include being able to be operated continuously and having a wide application compared to alternative rod mills.
Cast iron is cheaper compared to forged steel alternatives.
Cast iron has less size restriction compared to forged steel due to the difference in the process.
Ball mills are recommended when the finished product size is required to be less than 0.5mm, as they produce very fine powder and wide adaptability to materials. On the other hand, grinding rods are used if the finished product is 1 to 3mm.
| Diameter: | 25mm, 40mm, 50mm, 60mm, 80mm, 90mm |

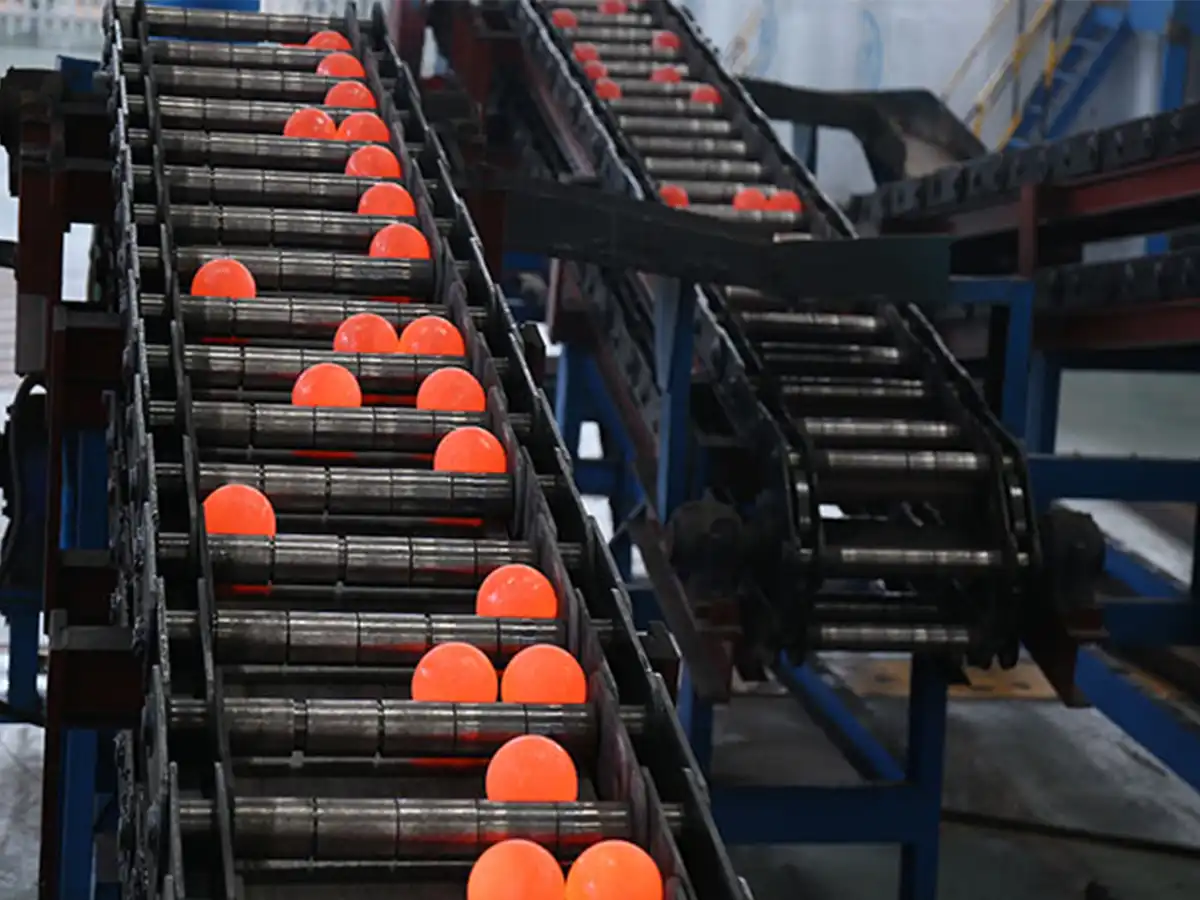

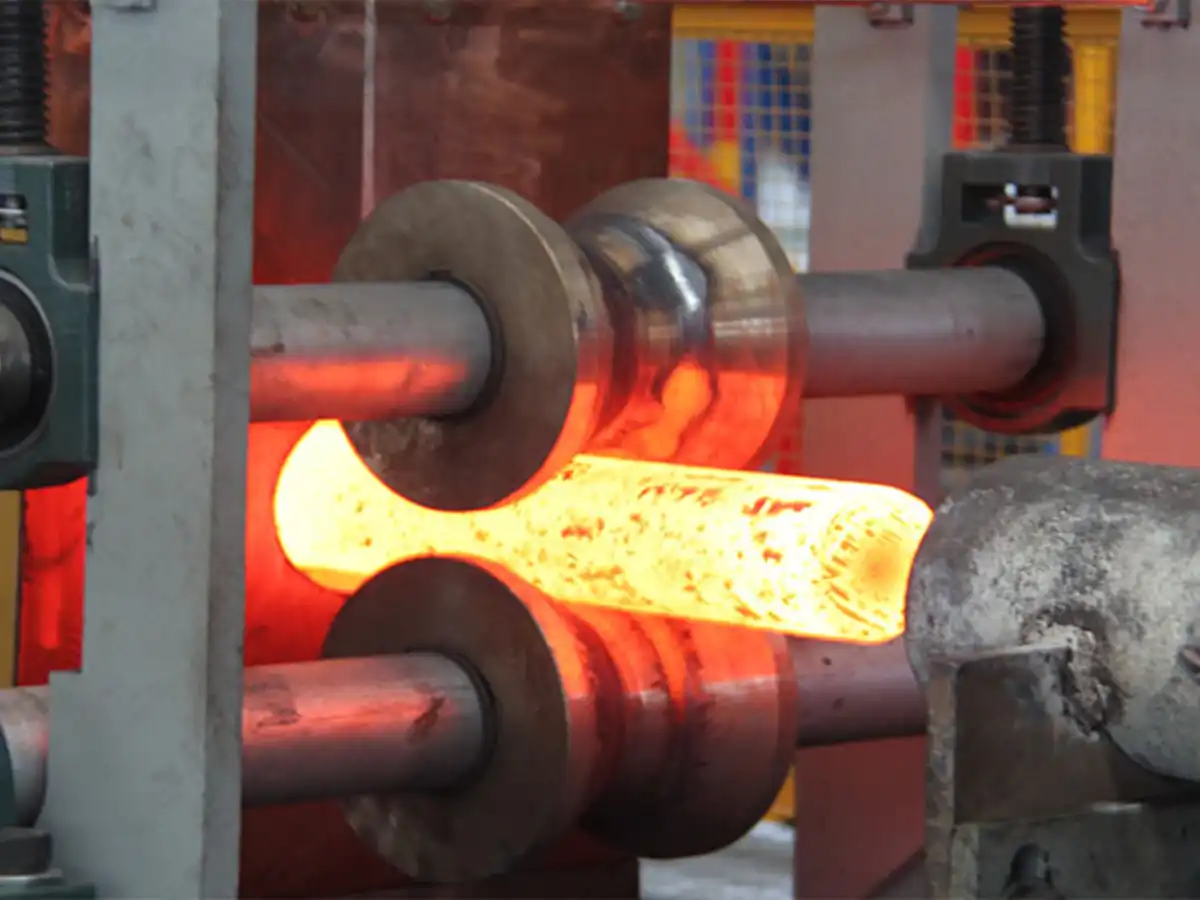

The cast iron grinding ball is excellent in surface quality, toughness, and resistance to impact and abrasion. It won’t crack and lose circularity easily. The stamping method that we use is that heating the metal until the temperature reaches 1050 degrees Celsius and utilizing the metal forming machinery to exert pressure onto the mechanical properties, shape and dimension. melting process of the metal and optimize the microstructure. Meanwhile, as a result of the preservation of the complete metal flow line, the piece has superior mechanical performance to the casting with the same material. The grinding ball must use the super wear resistant material to ensure the abrasion resistance, such as researched and developed independently by some companies themselves.
What is Ball Grinding?
A ball mill is a type of grinder used to grind, blend and sometimes for mixing of materials for use in mineral dressing processes and selective laser sintering. It works on the principle of impact and attrition: size reduction is done by impact as the balls drop from near the top of the shell. A ball mill consists of a hollow cylindrical shell rotating about its axis. The axis of the shell may be either horizontal or at a small angle to the horizontal. It is partially filled with balls. The grinding media are the balls, which may be made of steel, stainless steel, ceramic or rubber. The inner surface of the cylindrical shell is usually lined with an abrasion-resistant material such as manganese steel or rubber lining. The general idea behind the ball mill is an ancient one, but it was not until the industrial revolution and the invention of steam power that an effective ball milling machine could be built. It is reported to have been used for grinding flint for pottery in the 1800s.
